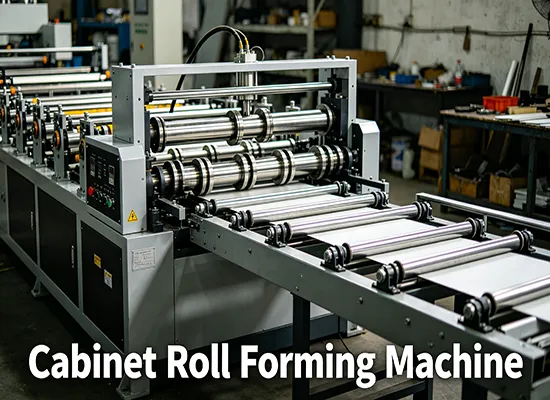

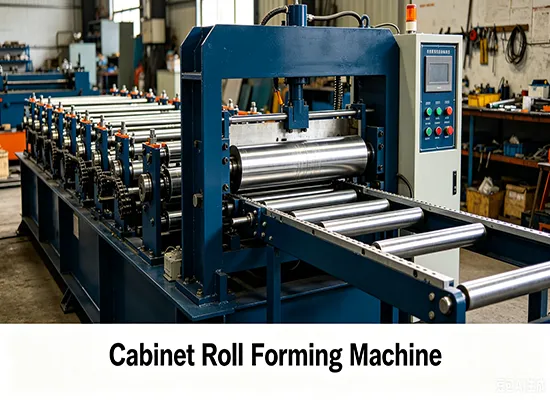

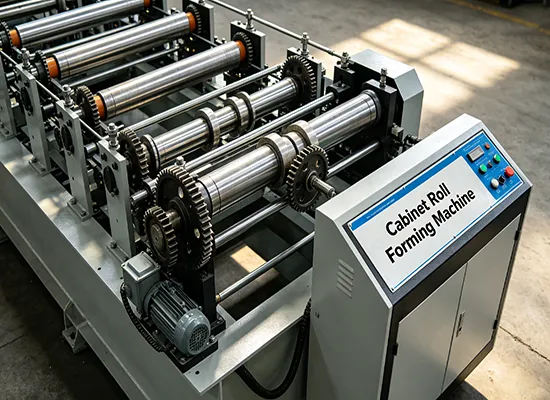

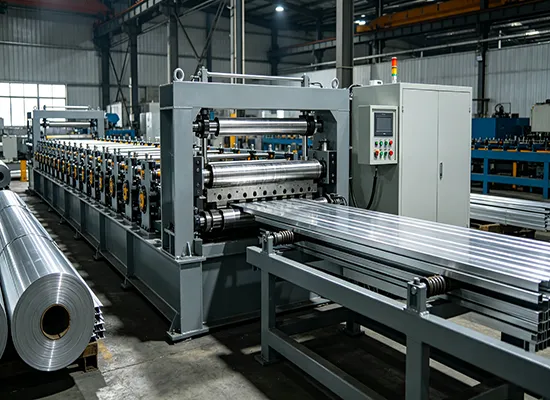

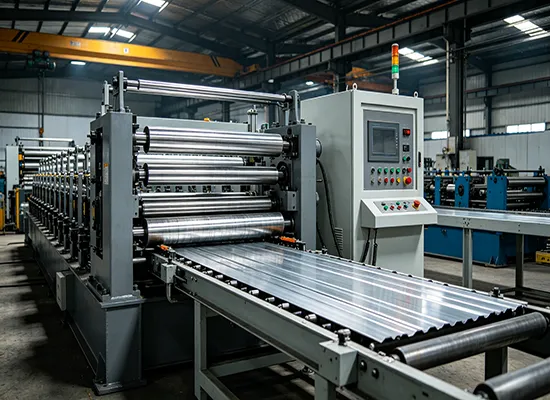

Our Cabinet Roll Forming Machine is a precision continuous cold forming system tailored for electrical and industrial cabinet production. It processes cold-rolled steel, galvanized steel, and prepainted metal strips into standardized cabinet side panels, door frames, base channels, and mounting brackets.
Fully automatic cold roll forming line custom-engineered to produce metal profiles for electrical cabinets, distribution boxes, switchgear enclosures, and equipment cabinet frames. It completes feeding, leveling, forming, punching, and cutting in one continuous automated workflow for high-volume cabinet component manufacturing.
| Item | Standard Parameter |
| Processable Material | Cold rolled steel, galvanized steel, color coated steel |
| Material Thickness | 0.8mm – 2.5mm |
| Forming Speed | 10–20 m/min (variable frequency adjustable) |
| Forming Roller Stations | 16–22 stations (customized per cabinet profile) |
| Roller & Cutter Material | Cr12MoV alloy steel, quenched & precision polished |
| Main Drive Motor Power | 15 KW / 18.5 KW |
| Hydraulic Station Power | 5.5 KW |
| Hydraulic Working Pressure | 14–16 MPa |
| Cutting Method | Hydraulic flying fixed-length shear |
| Punching System | Servo/automatic hydraulic pre-punching for holes & slots |
| Control System | Siemens PLC + color touch screen |
| Forming Precision Tolerance | ±0.3 mm |
| Uncoiler Load Capacity | 5 Ton / 6 Ton hydraulic uncoiler |
| Leveling Structure | 7-roller flattening unit |
| Total Machine Weight | ~7500 KG |
| Overall Machine Size | 11800mm × 1450mm × 1700mm |
| Standard Voltage | 380V 50Hz 3 Phase (custom global voltage available) |
One-Pass Fully Automatic Production: Combines uncoiling, leveling, forming, punching, cutting, and output stacking
Ultra-Precise Forming Tolerance: ±0.3mm dimensional accuracy for seamless cabinet assembly
Heavy-Duty Wear Resistant Tooling: Heat-treated Cr12MoV rollers and cut blades for long operational lifespan
Intelligent PLC Touch Control: Easy parameter adjustment, auto-counting, fault alarm, and length calibration
Wide Material Compatibility: Works with CR steel, GI steel, PPGL coated steel (thickness range 0.8–2.5mm)
Customizable Profile Molds: Adaptable for small electrical boxes, large power cabinets, server enclosure frames
High Output Speed: Adjustable forming speed from 10–20 m/min for mass production efficiency
