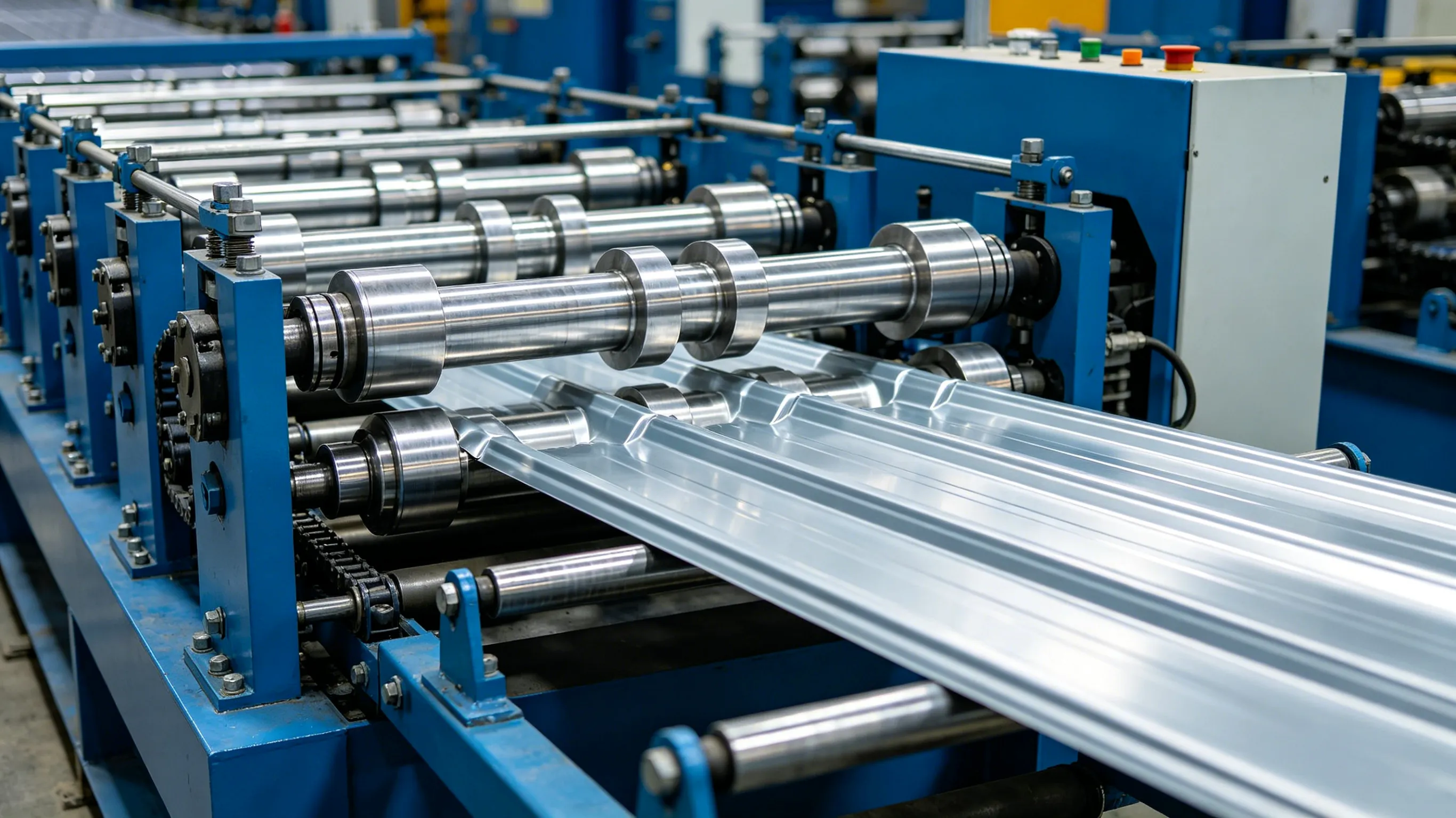

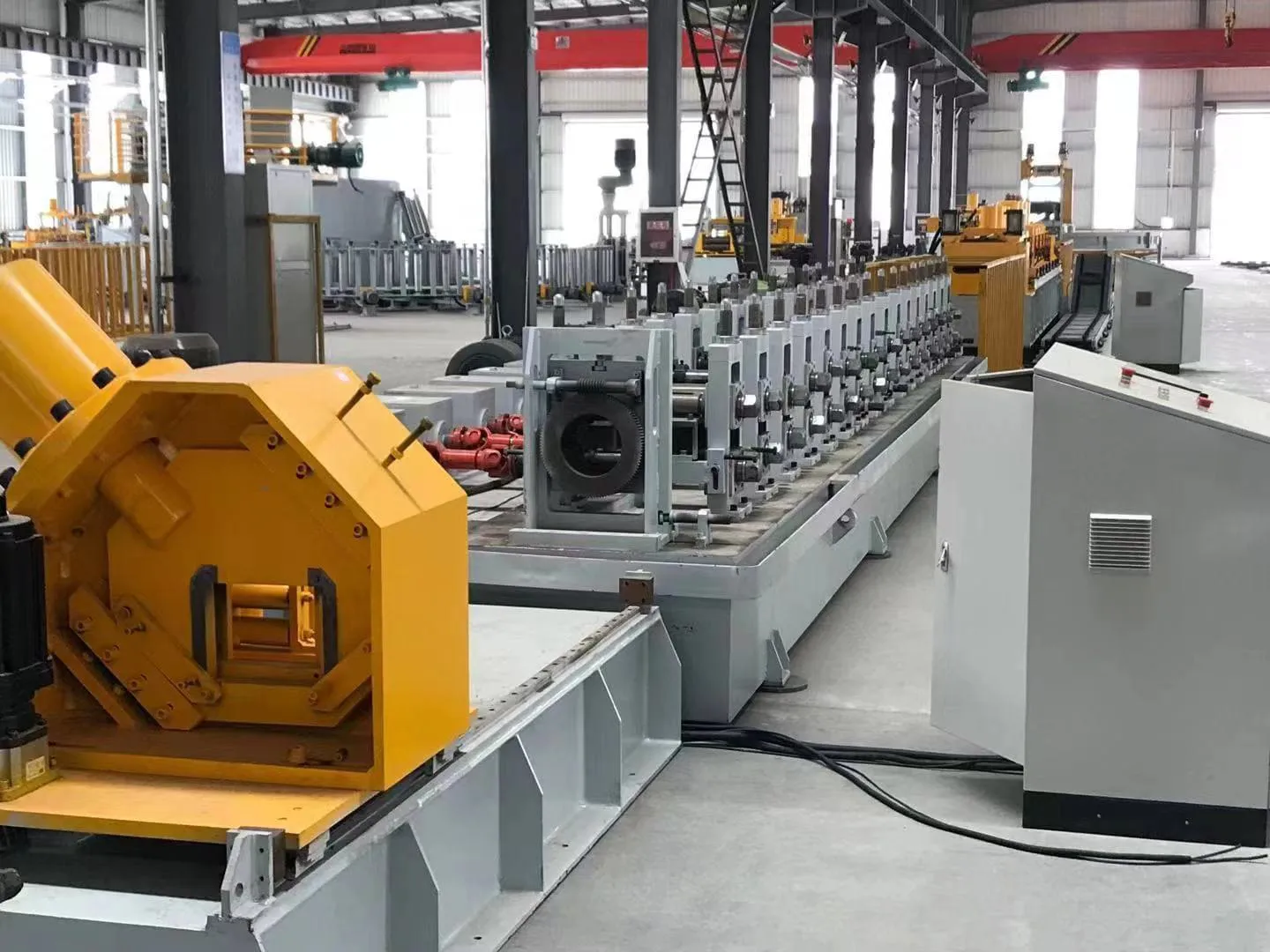

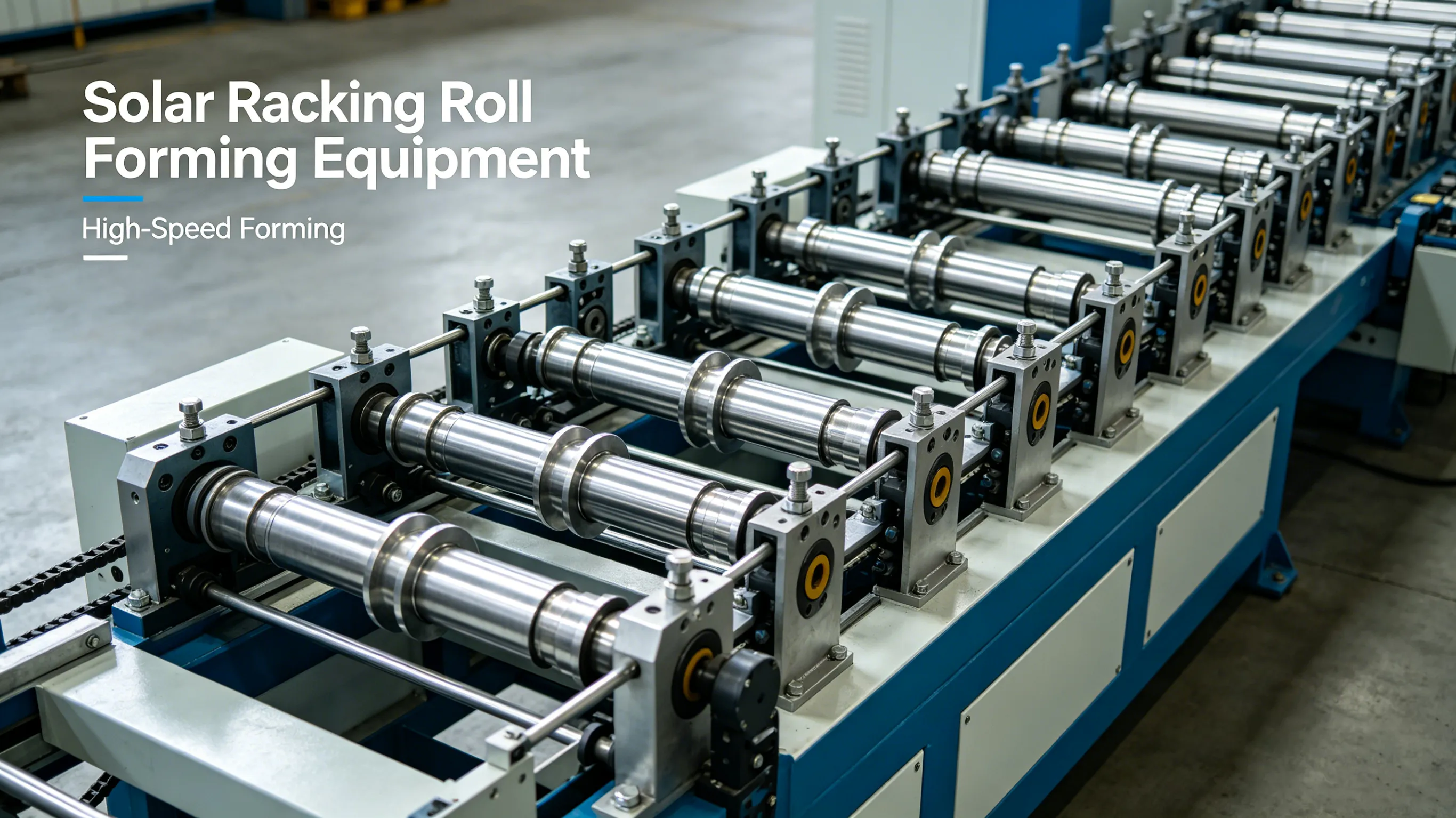

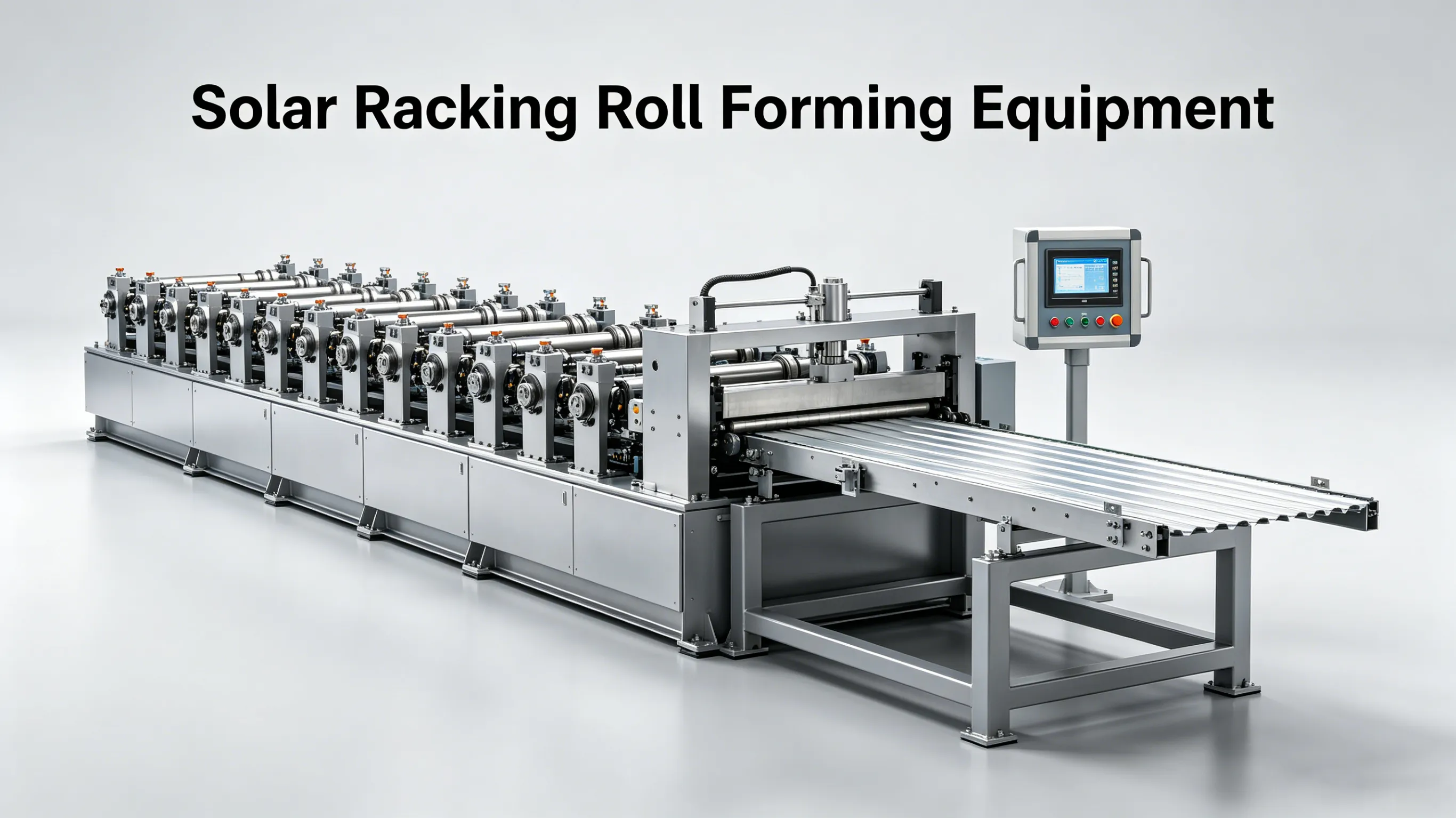

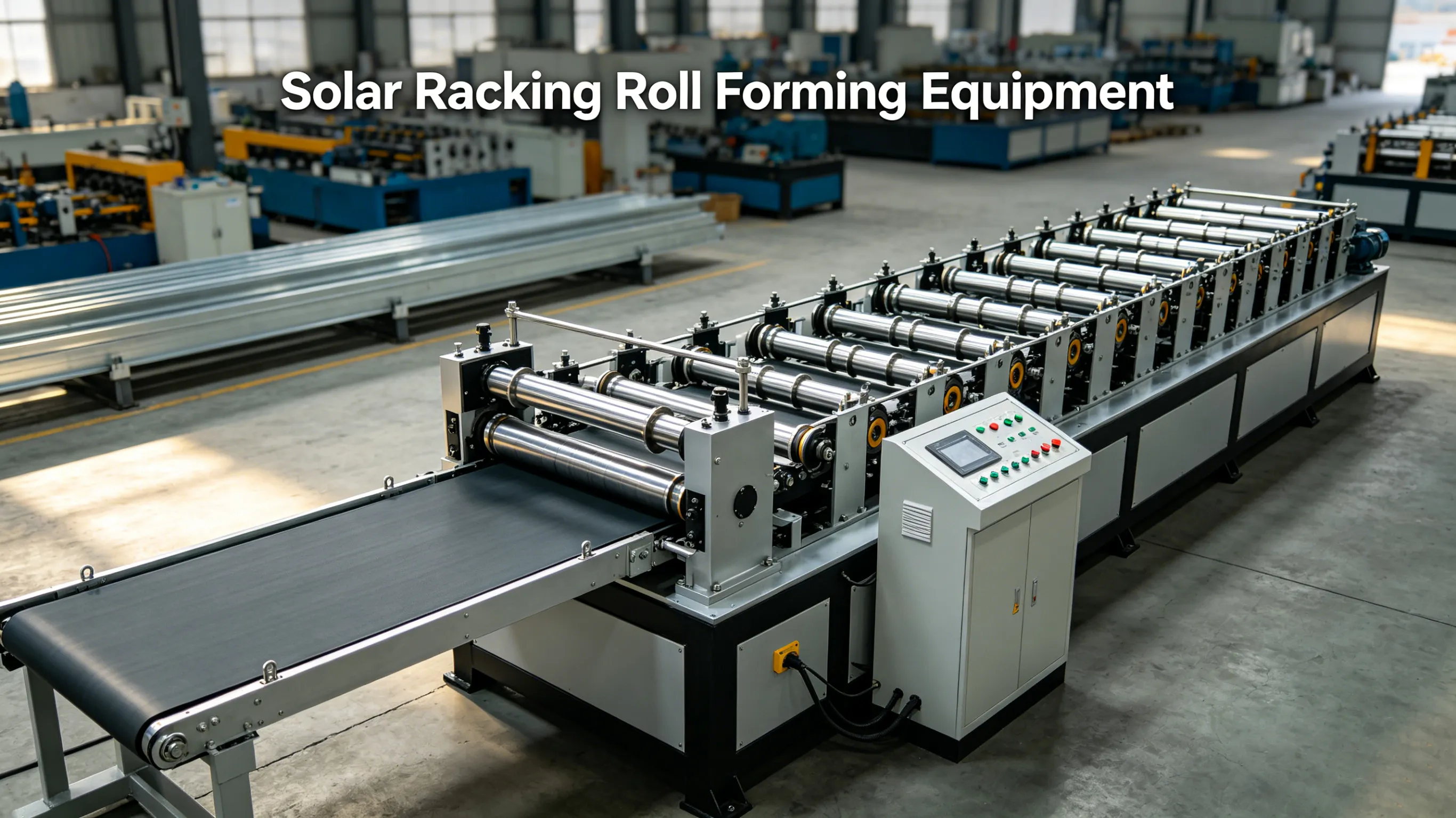

The Solar Racking Roll Forming Machine is a fully automatic cold roll forming production line designed for manufacturing photovoltaic (PV) mounting structures, including solar rails, C/U/Z channels, strut channels (e.g. 41×41mm, 41×21mm), and custom brackets used in rooftop and ground-mounted solar installations. The integrated line performs decoiling, leveling, servo punching (for mounting holes & slots), continuous roll forming, and flying cut-to-length in one synchronized process—delivering high-precision, burr-free profiles with minimal material waste.
| Item | Standard Specification |
| Applicable Raw Material | Hot-dip galvanized steel, cold rolled steel, high-strength structural steel |
| Material Thickness Range | 1.5 mm – 4.0 mm (customizable for heavy-duty solar projects) |
| Effective Coil Width | Customized according to solar profile drawing |
| Forming Running Speed | 6 – 14 m/min (frequency conversion adjustable) |
| Forming Roller Stations | 20 – 28 forming stations (depends on profile complexity) |
| Roller Material & Treatment | Cr12MoV alloy steel, quenched, tempered & precision mirror polished |
| Main Transmission Shaft Diameter | Φ80 mm / Φ90 mm thickened solid shaft |
| Main Drive Motor Power | 22 KW / 30 KW / 37 KW (optional) |
| Hydraulic Station Power | 7.5 KW |
| Working Hydraulic Pressure | 16 MPa |
| Cutting Mode | High-speed hydraulic flying cut / stationary fixed-length cut |
| Cutting Blade Material | Cr12MoV high wear-resistant die steel |
| Punching System | Automatic servo pre-punching; customizable hole size, pitch & multi-row punching |
| Control System | PLC intelligent control + industrial touch screen, auto counting, fault alarm, length memory |
| Forming Dimensional Tolerance | ±0.4 mm |
| Uncoiler Loading Capacity | 8 Ton / 10 Ton heavy-duty hydraulic uncoiler |
| Leveling Structure | 9-roller heavy-duty leveling machine for thick steel strip |
| Total Equipment Weight | Approximately 11000 KG – 15000 KG |
| Overall Outer Dimension | 14200 mm × 1800 mm × 2000 mm (adjustable by layout) |
| Standard Power Supply | 380V, 50Hz, 3 Phase; 220V/415V/60Hz customizable for overseas markets |
Inline Precision Punching: Hydraulic or servo punching unit creates round holes, oblong/slotted holes, and grounding holes with ±0.3mm positioning accuracy—ready for on-site bolt assembly.
Multi-Profile Capability: Available with fixed or quick-change cassette rollers to produce C-rails, U-channels, Z-purlins, and UNISTRUT-style slotted channels from the same line.
Heavy-Duty Forming Section: 16–24 forming stations with GCr15/Cr12MoV rollers (HRC 58–62, hard chrome plated) and 40Cr alloy shafts for consistent straightness and long tool life.
Non-Stop Flying Cut: Hydraulic flying shear or servo tracking cut ensures clean, burr-free cuts without stopping the line, maintaining continuous high-speed output.
PLC + HMI Control: Touch-screen interface allows batch programming of length, quantity, punching patterns, and production monitoring with encoder-based length tolerance within ±1mm.
