3D Blue Light Scanner available for detecting the inner quality of metal product.
Coordinate Measuring Machine(short for CMM),a kind of high precision measuring device,which is widely used in manufacturing ,avaiation ,automotive and industrial fields,mainly measuring shape size and tolerance.
Projector ,its main function is to magnify the product and check its size accordingly.

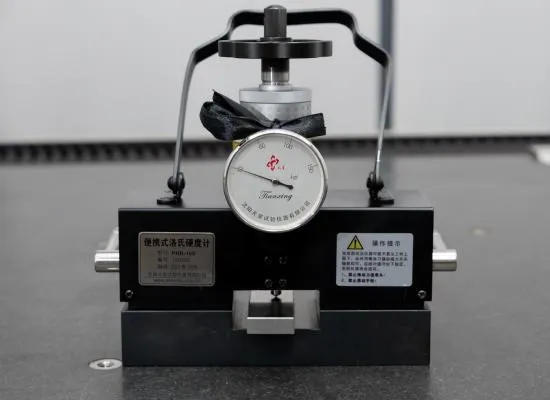

Hardness tester for testing the hardness of the material.
Testing tools and Inspection Gauges are available for checking.
| Parameter | Specification / Typical Value |

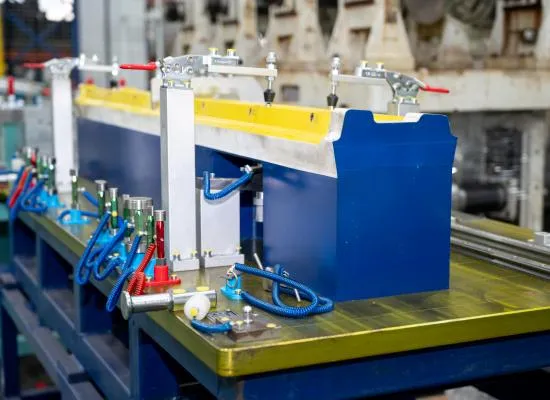

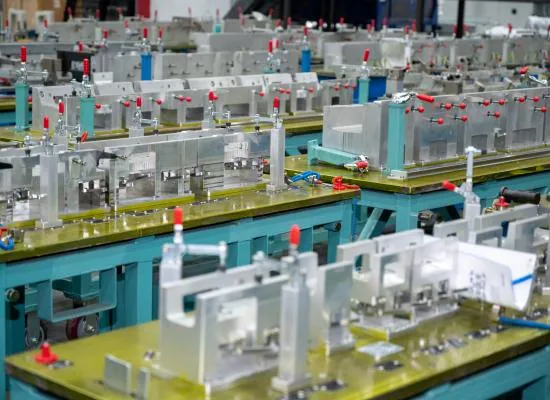

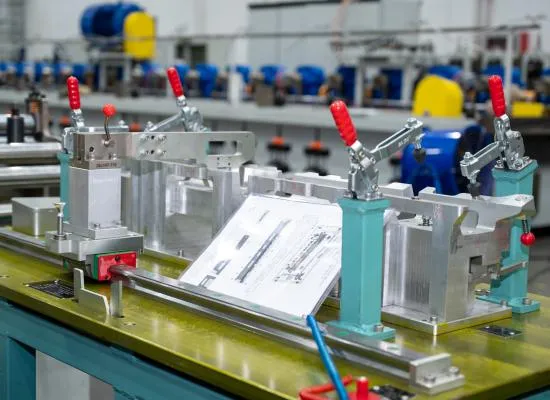

| Gauge Type | Handheld Profile Template (Go/No-Go); Bench-mounted Checking Fixture with locating pins & feeler slots; Section Comparator Template |
| Applicable Profile | C/Z Purlin, U-Channel, Hat Section, Roof/Wall Panel, Door/Window Frame, Solar Rail, Racking Upright |
| Base Material | Anodized Aluminum Alloy (6061-T6) for templates; Mild Steel baseplate (electroplated) for bench fixtures |
| Insert / Wear Part Material | Hardened tool steel (SKD11 / D2) or stainless steel (304/316) for high-wear contact edges |
| Manufacturing Method | CNC Waterjet / Laser Cutting + Hand-finishing / CNC Milling for fixture blocks |
| Inspection Tolerance (Gauge Itself) | Profile contour: ±0.05 mm – ±0.10 mm; Datum locating pins: ±0.02 mm; Flush/feeler check: ±0.10 mm |
| Checked Dimensions | Web width, flange height, lip return, corner inner/outer radius, rib depth, panel overall width, twist angle |
| Surface Finish | Anodized (Al) — clear or black; Baseplate: Chrome-plated or Black oxide; Marked with part No. & rev level |
| Identification Plate | Stainless steel tag with Profile Part No., Revision, Date of Mfg, Serial No. |
| Calibration | Supplied with dimensional inspection report / Certificate of Conformance (C of C) on request |
| Optional Accessories | Feeler gauges (0.05–1.00 mm), Digital caliper (Mitutoyo / equivalent), Height gauge, Straightedge (1m/2m) |
| Compliance Reference | ISO 9001:2015 QA process; Check built to ±10% of part tolerance per industry checking fixture standard |
| Packaging | Individual wooden case / foam-lined box with anti-rust protection |
Dimensional Measurement
Surface & Finish Inspection
Material Property Testing
Structural Integrity (NDT)
