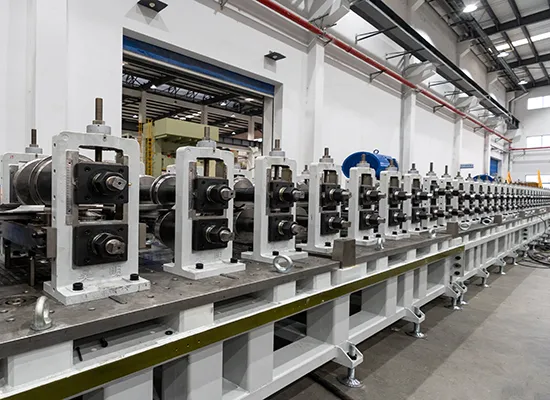

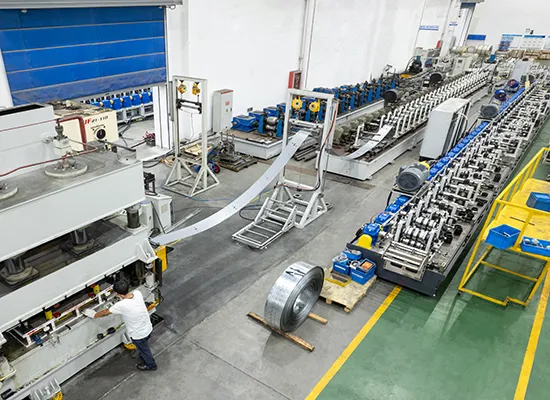

The Elevator Roll Forming Machine is a fully automatic cold roll forming line designed for the continuous production of elevator door frames, car wall panels, jamb profiles, and T-type / hollow guide rails. The line transforms steel coils into precision-shaped profiles through decoiling, leveling, servo feeding, hydraulic punching, roll forming, and flying cut-to-length — all controlled by a PLC touch-screen system.
Engineered for high dimensional accuracy and smooth surface finish, it is ideal for manufacturing elevator components that require tight tolerances and aesthetic quality.
| Parameter | Specification / Typical Value |

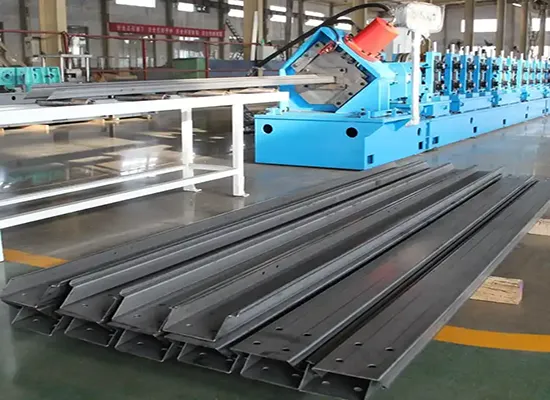

| Applicable Profile | Hollow T-Guide Rail: TK3, TK5, TK3A, TK5A; Escalator / Car Guide Channels (per OEM drawing) |
| Raw Material | Hot / Cold Rolled Steel Strip, Q235B / Q345B, Galvanized (optional) |
| Strip Thickness | 1.5 mm – 3.0 mm (hollow rail); up to 4.0 mm for special heavy sections |
| Strip Width | 100 mm – 350 mm (profile-dependent) |
| Coil Weight Capacity | 3 / 5 / 10 Ton Hydraulic Decoiler |
| Coil I.D. / O.D. | I.D.: Φ450–Φ600 mm; O.D.: ≤Φ1600 mm |

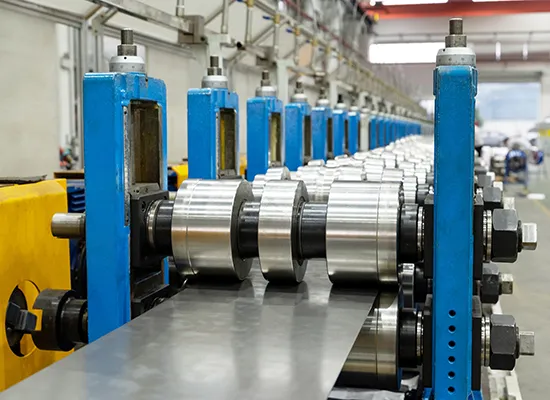

| Forming Stations | 16 – 24 stands (archway / cast-iron housing type); final 2–4 stands for sizing / straightening |

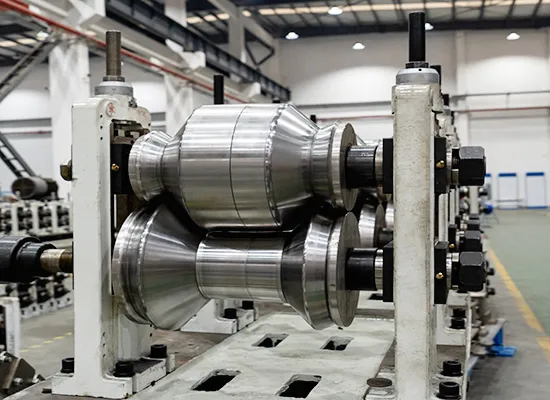

| Roller Material | GCr15 (AISI 52100) bearing steel or Cr12MoV (SKD11), HRC 58–62, hard chrome plated |
| Shaft Diameter / Material | Φ80–Φ120 mm, 40Cr / 42CrMo, tempered & ground |
| Drive System | Independent Gearbox Drive (upper & lower drive for heavy sections) / Heavy Duty Chain (light duty) |
| Main Motor Power | 18.5 kW – 37 kW (AC variable frequency, Siemens / Delta / WEG optional) |
| Line Forming Speed | 6 – 15 m/min (adjustable via VFD) |
| Hydraulic Punching | 40T–120T hydraulic press, servo-fed, for bolt holes / fishplate slots / embossing |
| Cutting System | Hydraulic Post-Cut (stop-cut) or Flying Shear; Blade: Cr12MoV / SKD11, HRC 58–62 |
| Cut Length Tolerance | ±1.0 mm (per piece) |
| Straightness Requirement | ≤0.5 mm/m, ≤2.5 mm/5m (with 3D correction head) |
| Control System | PLC (Siemens / Mitsubishi / Delta) + Encoder + Touch Screen HMI |
| Hydraulic Station Power | 5.5 – 11 kW, 14–20 MPa |
| Voltage / Frequency | 380V/50Hz/3Ph (customizable to 415V/480V/60Hz) |
| Machine Frame | Heavy-duty welded steel plate (20–35 mm) or cast iron archway, stress-relieved |
| Overall Dimension (Line) | Approx. 22,000 × 2,500 × 2,000 mm (L×W×H) |
| Total Weight | 12 – 28 Ton |
| Standards & Cert. | ISO 9001:2015; CE optional; Complies with EN 81-20 / JG/T 5072.3 profile tolerances |
High Precision Forming: Profile tolerance within ±0.1–0.5mm; straightness and twist strictly controlled to meet elevator assembly standards.
Multi-Profile Capability: Optional quick-change cassette system or adjustable archways for producing different door frame / guide rail sizes.
Servo Punching Unit: In-line hydraulic or servo punching for mounting holes, bolt slots, and guide channels with positioning accuracy ±0.15mm.
Surface Protection: Hard-chrome-plated or mirror-finished rollers prevent scratching on stainless steel (SUS304/430) and pre-painted coils.
High-Speed Production: Forming speed 10–25 m/min (door profiles) / 8–15 m/min (heavy guide rails); non-stop flying shear cutting.
Robust Construction: Heavy-duty welded frame with precision-machined stands; gearbox or heavy-chain drive for stable long-term operation.
Safety & Compliance: Full safety guarding, light curtains, emergency stops; CE / UL compliant electrical cabinets available.
