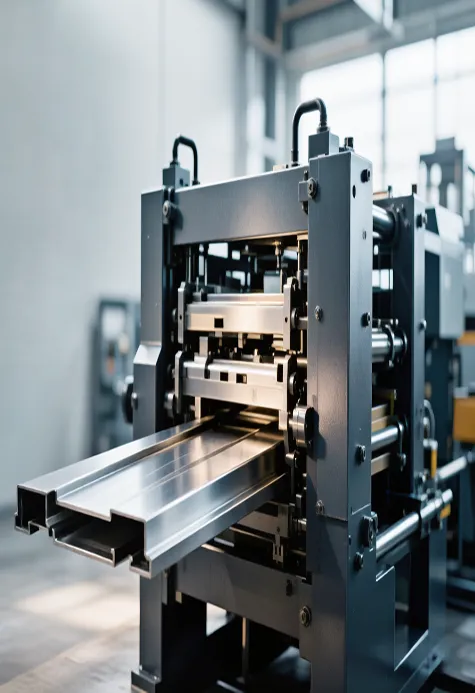

The durability, precision, and service life of a heavy-duty construction roll forming machine largely depend on the grade of materials used in its critical components. Below are the industry-standard advanced materials we utilize :
1. Forming Rollers (The Most Critical Component)
GCr15 Bearing Steel (AISI 52100): High-carbon chromium bearing steel, quenched & tempered to HRC 58–62. Offers excellent wear resistance and uniform hardness — the standard for roof/wall panel and light-gauge steel machines.
2. Cr12MoV / SKD11 (AISI D2 High-Carbon High-Chromium Tool Steel): Used for heavy-duty profiles such as C/Z purlins, floor decking, or high-tensile steel forming . Superior compressive strength and abrasion resistance for long-run production .
3. Surface Treatment: Rollers are typically Hard Chrome Plated (0.02–0.05mm) to reduce friction, prevent galvanized material pickup, and resist corrosion .
Standard machines operate at 10–15 meters per minute (m/min). For high-speed production lines (e.g., purlin or decking lines), we offer servo-driven systems capable of speeds up to 30–40 m/min without compromising dimensional accuracy.
Our machines maintain strict tolerance control. Typically, the straightness tolerance is within ±1.5mm per meter, and the length tolerance is ±1.0mm. This ensures perfect assembly on the construction site and minimizes installation gaps.
Yes. We offer quick-change cassette systems or adjustable spacers that allow operators to switch between different widths or heights within minutes. This significantly reduces downtime compared to traditional fixed machines.
Our standard construction roll forming machines are designed for Pre-painted steel (PPGI), Galvanized steel (GI), Galvalume (GL), and Aluminum. We can customize the rollers and feeding guides based on your specific tensile strength and thickness requirements (typically 0.3mm–3.0mm).
Absolutely. We manufacture machines for common international standards, including C/Z Purlins, Floor Decking (composite slabs), and Standing Seam Roofing. If you have specific engineering drawings or local code requirements, we can design the rollers accordingly.
