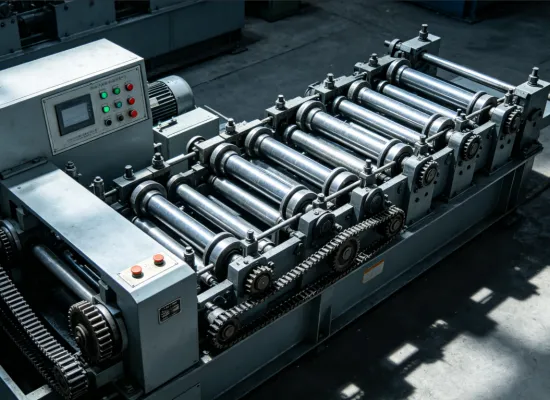

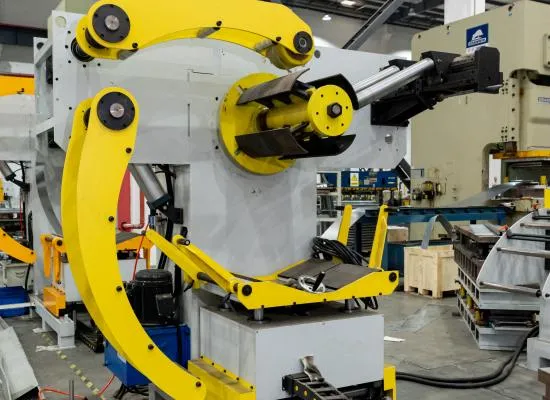

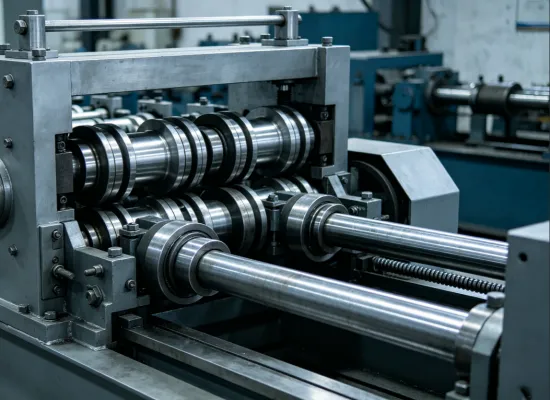

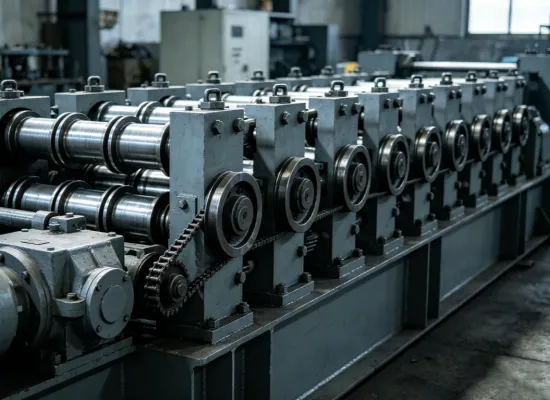

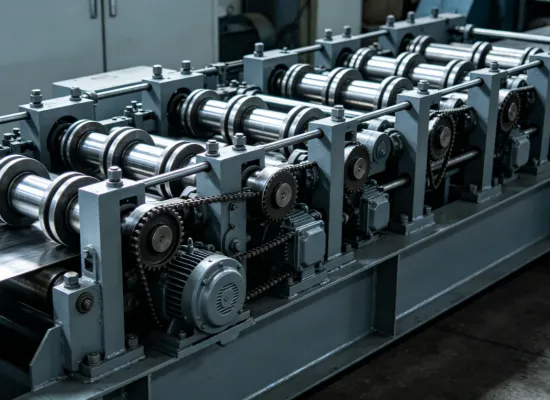

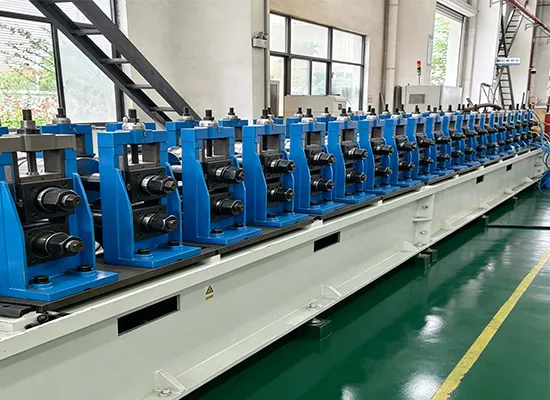

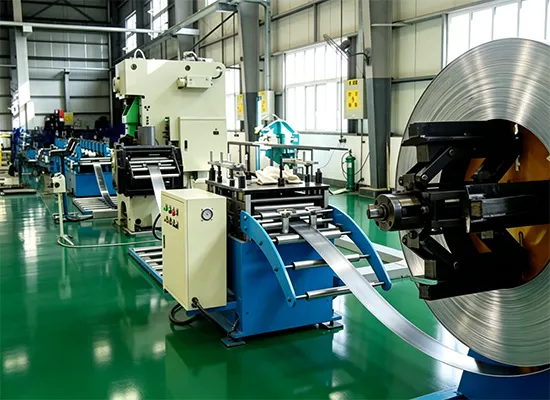

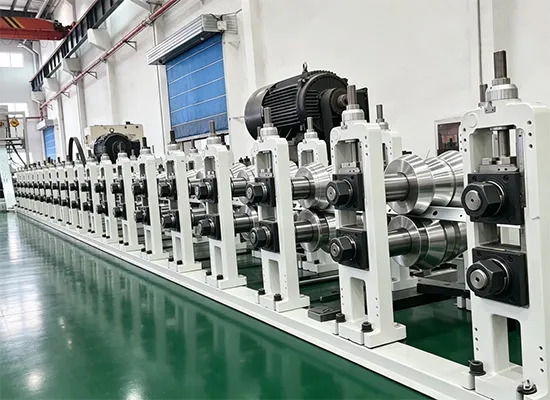

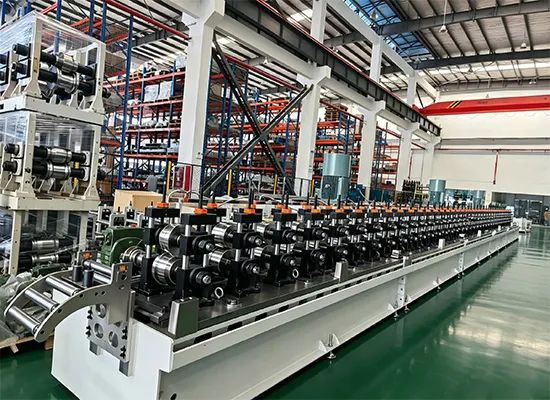

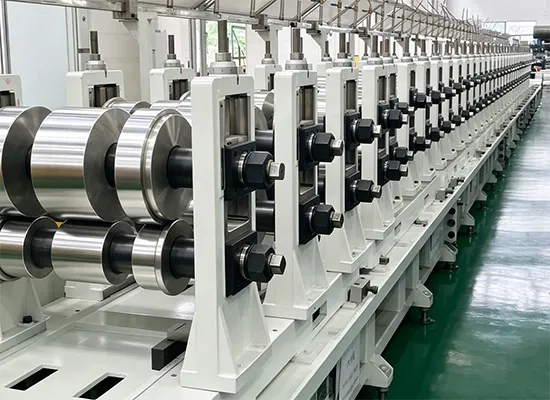

A roll forming machine is an industrial cold-forming system that progressively bends a continuous flat metal strip or coil into a desired cross-sectional profile through a series of contoured roller stations. It typically consists of an uncoiler, leveler/feeder, multiple roll forming stands, optional hydraulic punching units, a flying cut-off, and a run-out table. The process is continuous, high-speed, and produces consistent, dimensionally accurate profiles such as roofing sheets, C/Z purlins, stud & track, and cable trays with minimal material waste.
| Parameter | Specification |
| Raw Material | Galvanized Steel, PPGI, Cold Rolled Steel, Aluminum |
| Material Thickness | 1.2 – 3.0 mm (purlin); 0.3 – 0.8 mm (panel) |
| Coil I.D. | Φ508 mm (standard), expandable |
| Coil O.D. | ≤Φ1500 mm |
| Max. Coil Weight | 3–8 Ton (hydraulic decoiler optional) |
| Forming Stations | 16–24 stations (profile dependent) |
| Roller Material | GCr15 (AISI 52100) bearing steel, HRC 58–62, hard chrome plated / or 45# steel with chrome |
| Shaft Diameter & Material | Φ70–Φ100 mm, 40Cr / 45# steel, tempered |
| Drive System | Chain drive (light duty) / Gearbox drive (heavy duty) |
| Main Motor Power | 7.5 / 11 / 15 / 22 kW (Siemens / Delta / WEG optional) |
| Line Forming Speed | 6–20 m/min (variable frequency controlled) |
| Cutting System | Hydraulic Post-Cut (stop-cut) or Flying Cut (non-stop); Blade: Cr12MoV / SKD11, HRC 58–62 |
| Cutting Length Tolerance | ±1.0 mm (per piece ≤ 2m); ±2.0 mm (per 6m) |
| Control System | PLC (Siemens / Mitsubishi / Delta) + Touch Screen HMI + Encoder |
| Hydraulic Station Power | 4–7.5 kW, 10–16 MPa |
| Voltage / Frequency | 380V/50Hz/3Ph (customizable to 415V/480V/60Hz) |
| Machine Frame | Heavy-duty welded steel plate (14–22 mm), stress relieved |
| Overall Dimension (L×W×H) | Approx. 8,500 × 1,500 × 1,400 mm (varies by model) |
| Total Weight | 4–12 Ton |
| Safety & Standard | CE (optional), ISO 9001:2015, Emergency stop buttons, Safety covers |
It's continuous, high-speed production with stable output and consistent profile accuracy.
It enables long-run manufacturing without frequent stops.
It delivers high dimensional accuracy and excellent straightness.
Maintains tight tolerances across long lengths of formed profiles.
Optimized material usage with minimal scrap .
It supports narrow-width coils and precise cutting-to-length .
Fully automatic line including uncoiling, leveling, roll forming, punching, and cutting.
PLC control with touch screen interface for easy operation.
Progressive roller design ensures smooth forming without twisting or warping.
Reduces internal stress in the finished product.
Compatible with steel, galvanized steel, aluminum, stainless steel, etc.
Handles a wide thickness range depending on machine configuration .
Quick-change roller sets or adjustable stands for multi-profile production .
Reduces downtime when switching between products .
Heavy-duty machine frame for long service life and reliable performance under continuous operation .
