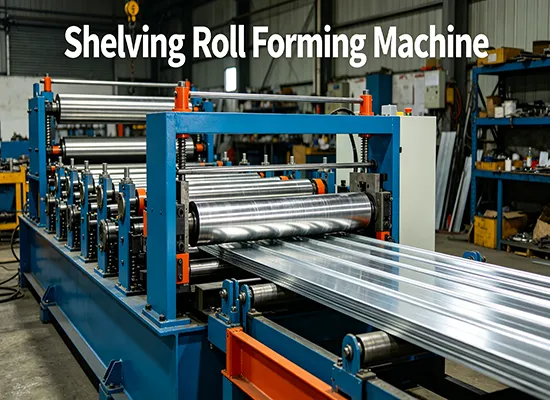

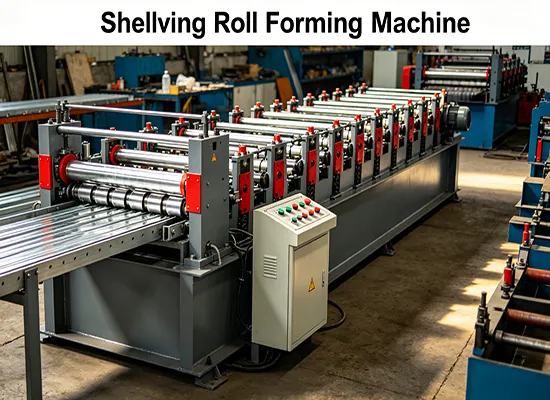

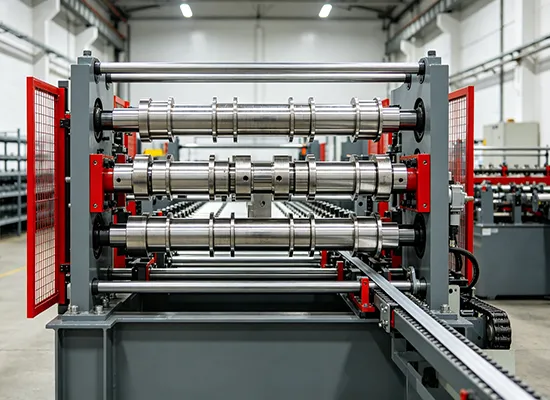

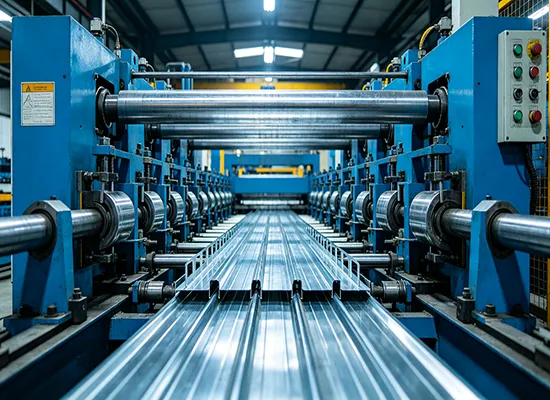

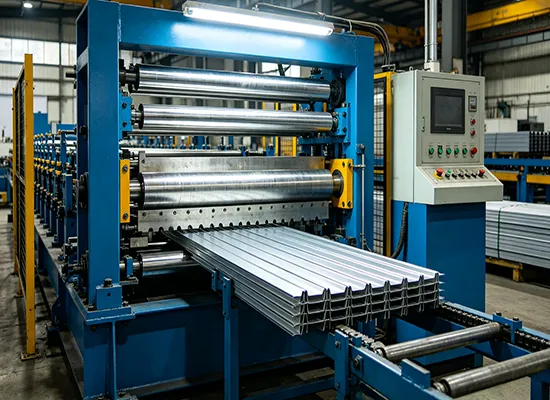

Shelving roll forming machine is a fully automated metal cold bending production equipment specially designed for manufacturing storage rack uprights, beam profiles, shelf panels and supermarket shelving components. It continuously shapes galvanized steel, cold rolled steel, stainless steel strips into precise shelving structural profiles through sequential sets of forming rollers, integrating uncoiling, leveling, punching, forming, cutting and output into one streamlined production line .
| Item | Standard Specification |
| Applicable material | Cold rolled steel, galvanized steel |
| Material thickness | 1.2–3.0 mm |
| Forming speed | 15–30 m/min |
| Main motor power | 15–30 kW |
| Punching pressure | 60–120 tons hydraulic |
| Control system | Siemens PLC + touch screen |
| Cutting mode | Servo flying shear |
| Total line weight | 8–18 tons |
High automation: One-person operation, continuous 24-hour stable running;
High dimensional accuracy: Tolerance within ±0.3mm for thickness, width and hole spacing
Wide material adaptability: Works with 1.2–3.0mm cold-rolled steel, GI galvanized steel, prepainted steel
Customizable profile: Adjustable roller sets for light-duty, medium-duty, heavy-duty warehouse racking & retail shelving
We are looking forward to working with you. Please feel free to contact us if you have any inquiry.
