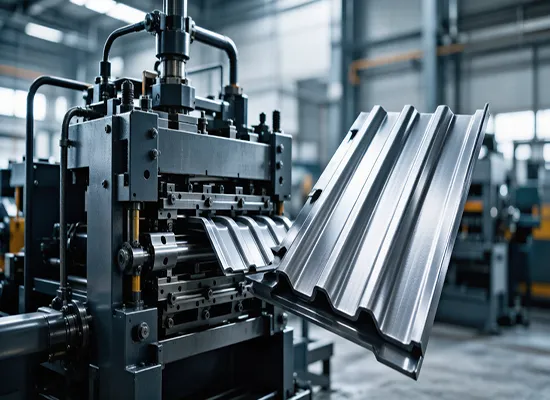

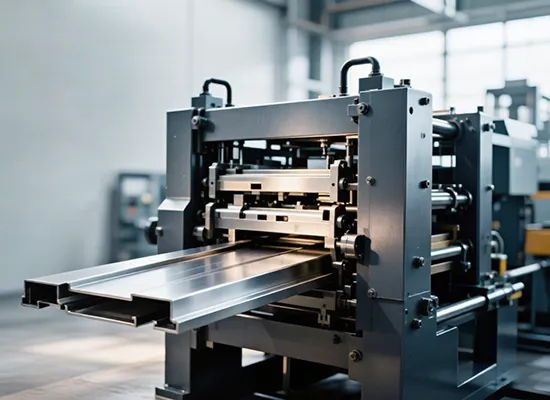

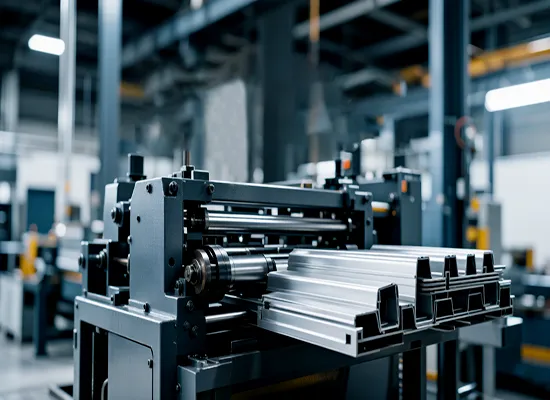

The Construction Roll Forming Machine is a fully automatic cold roll forming line designed for high-precision production of building components such as metal roof & wall panels, C/Z purlins, floor decking sheets, and light gauge steel framing profiles. The line integrates hydraulic/manual decoiler, precision leveling, multi-station roll forming, optional hydraulic punching, hydraulic cut-to-length and PLC-controlled automatic stacking. Built with heavy-duty welded steel frames and heat-treated Cr12MoV / GCr15 rollers with hard chrome plating, the machine ensures long service life, tight dimensional tolerances (±1.0mm length tolerance), and stable high-speed operation for continuous industrial production.
| Parameter | Specification / Typical Value |
| Raw Material | Hot-Dip Galvanized (GI), Galvalume (GL), Pre-painted Steel (PPGI), Cold Rolled Steel, Aluminum |
| Material Thickness | Purlin: 1.2–3.5 mm; Panel: 0.3–0.8 mm; Floor Deck: 0.6–1.5 mm; Stud: 0.4–1.2 mm |
| Coil Width | 100 mm – 1250 mm (profile-dependent) |
| Coil I.D. / O.D. | I.D.: Φ508 mm (expandable); O.D.: ≤Φ1500 mm |
| Max. Coil Weight | 3 / 5 / 10 Ton Hydraulic Decoiler (optional coil car) |

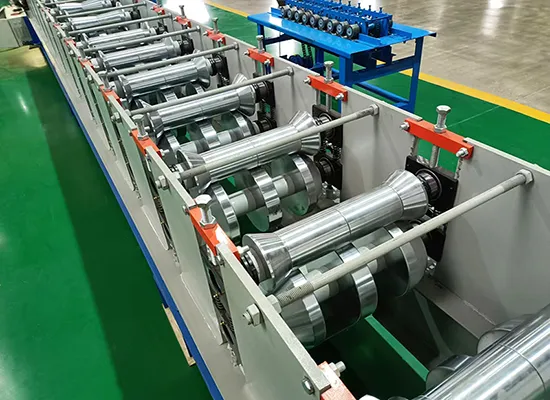

| Forming Stations | 10–30 stations (archway or wall-plate type) |
| Roller Material | GCr15 (AISI 52100) bearing steel / Cr12MoV (SKD11), HRC 58–62, Hard Chrome Plated (0.02–0.05mm) |
| Shaft Dia. & Material | Φ70–Φ120 mm, 40Cr / 45# steel quenched & tempered, ground finish |
| Drive System | Heavy-duty Chain Drive (light duty) / Gearbox Drive (heavy duty purlin & deck lines) |
| Main Motor Power | 3 kW – 30 kW (Siemens / Delta / WEG optional, VFD controlled) |
| Line Forming Speed | 6–25 m/min (mechanical); up to 60 m/min (high-speed stud & track line) |
| Hydraulic Punching Unit | 10T–120T hydraulic press, servo-fed, for bolt holes / web-notching / end-cuts (optional) |
| Cutting System | Hydraulic Post-Cut (stop-cut) or Flying Cutoff (non-stop); Blade: Cr12MoV / SKD11, HRC 58–62 |
| Cut Length Tolerance | ±1.0 mm (per 2m); ±2.0 mm (per 6m) |
| Control System | PLC (Siemens / Mitsubishi / Delta) + HMI Touch Screen + Rotary Encoder |
| Hydraulic Station Power | 4–11 kW, 12–20 MPa |
| Voltage / Frequency | 380V/50Hz/3Ph (customizable to 415V/480V/60Hz) |
| Machine Frame | Heavy-duty welded H-beam / steel plate (16–30mm), stress-relieved |
| Overall Dimension (Line) | Approx. 7,500–15,000 × 1,400–2,500 × 1,400–1,800 mm (L×W×H) |
| Total Weight | 3–18 Ton (model dependent) |
| Safety & Standard | CE (optional), ISO 9001:2015, Emergency Stop, Safety Covers / Light Curtains |
| Warranty | 12 months after commissioning |
High straightness and consistent cross-section with tight tolerances
Hard chrome-plated rollers for wear & corrosion resistance
PLC auto length/quantity setting with ±1mm cutting accuracy
Optional quick-change cassette system for multi-profile production
