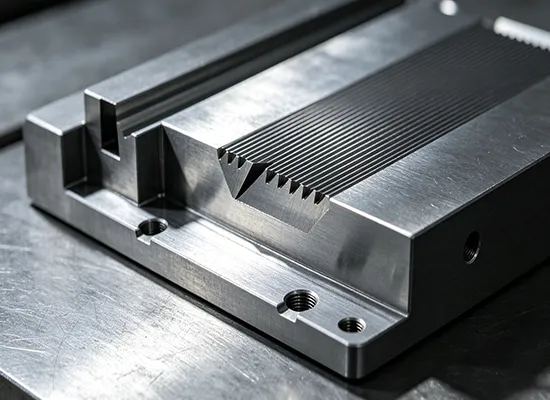

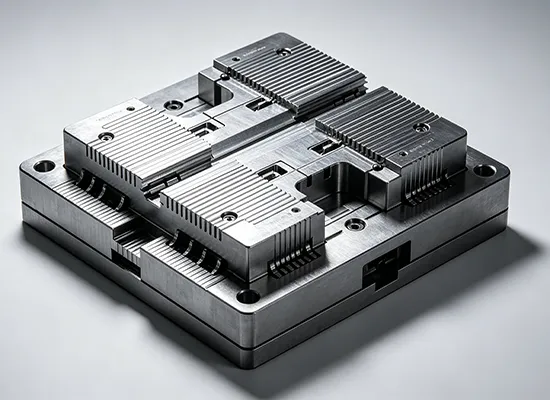

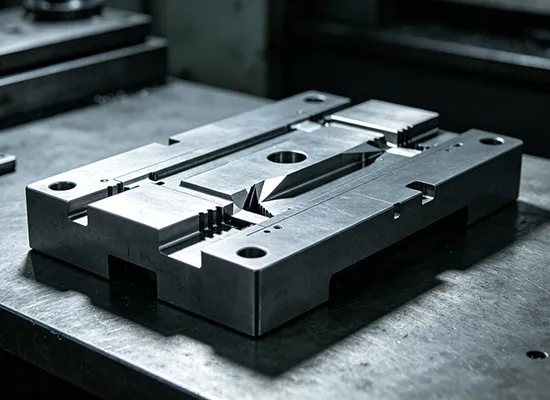

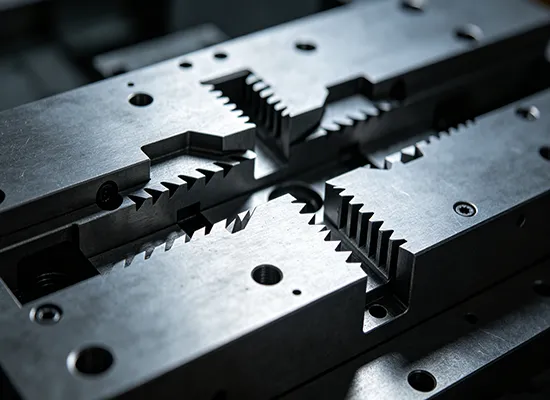

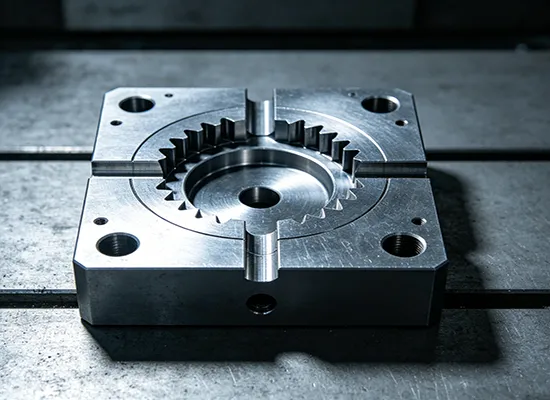

Our precision-engineered cut-off dies are critical terminal components for high-speed roll forming lines. Designed for both static (stop-and-cut) and flying (non-stop) applications, these dies ensure clean, burr-free cuts at high cyclic rates.
Manufactured from premium SKD11 (D2) or Cr12MoV tool steel, the blades undergo vacuum heat treatment to achieve a hardness of HRC 58–62. This ensures exceptional wear resistance and edge retention when processing high-trength materials like AHSS, Stainless Steel, and Coated Steels. The cutting clearance is precisely ground to match your specific material gauge, guaranteeing perpendicular cuts and extending tool life.
| Parameter | Specification / Typical Value |
| Blade / Die Material | Cr12MoV (China D2 / JIS SKD11 / AISI 1.2379); Optional: DC53 (improved SKD11), SKH-51 (HSS for thin gauge), ASP23 (PM-HSS), Tungsten Carbide insert (special apps) |
| Blade Hardness (After HT) | HRC 58 – 62 (D2/SKD11); HRC 60 – 64 (DC53); HRC 62 – 65 (SKH-51) |
| Heat Treatment Process | Vacuum quenching + Multiple tempering + Deep cryogenic treatment (optional) |
| Surface Finish | Precision ground; Ra ≤ 0.4 μm cutting edge; Optional TiN / TiCN / DLC coating |
| Blade Thickness | 8 mm – 40 mm (typical: 12 / 16 / 20 / 25 mm) |
| Blade Length / Width | 100 mm – 600+ mm (single piece) or segmental interlocking sets for wide profiles |
| Cutting Edge Angle / Relief | 1°–3° relief angle; Shear angle customizable per profile cross-section |
| Cutting Capacity (Material) | Mild steel / Galvanized / Pre-painted: 0.3 – 6.0 mm; Stainless: up to 3.0 mm (with appropriate blade grade) |
| Clearance (Die Gap) | 5% – 10% of material thickness (typically 0.05 – 0.30 mm) |
| Cut Type Compatibility | Hydraulic Post-Cut (Stop-Cut), Flying Cutoff (Sync with line), Rotary Shear / Slugless Shear |
| Mounting / Shut Height | Custom per press/flying carriage; Pre-drilled & tapped M10/M12/M16 mounting holes |
| Length Tolerance (System) | ±0.5 – ±2.0 mm (dependent on encoder & line configuration) |
| Edge Squareness | ≤0.1 mm deviation per 100 mm cut length |
| Service Life (Est.) | 500,000 – 2,000,000+ cuts (depending on material, lubrication & maintenance) |
| Packaging | Anti-rust oil + VCI film + Plywood case |
| Certificates | ISO 9001:2015; Material & Heat Treatment Report included |
Burr-Free Cutting: Optimized blade gap control minimizes deformation and eliminates secondary finishing.
Extended Tool Life: Surface treatment options (e.g., Titanium Nitride coating) available for abrasive materials.
High-Speed Sync: Designed to integrate seamlessly with servo-driven flying cut systems.
Easy Maintenance: Modular design allows for quick blade replacement, minimizing production downtime.
