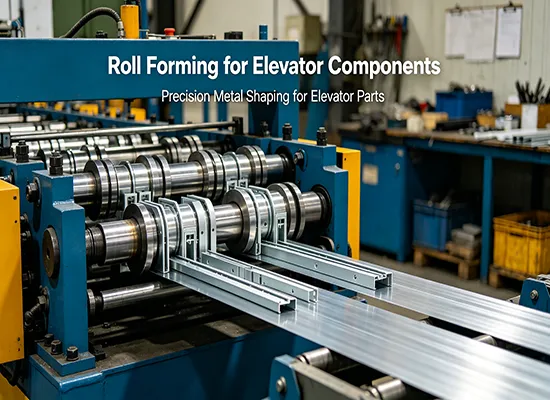

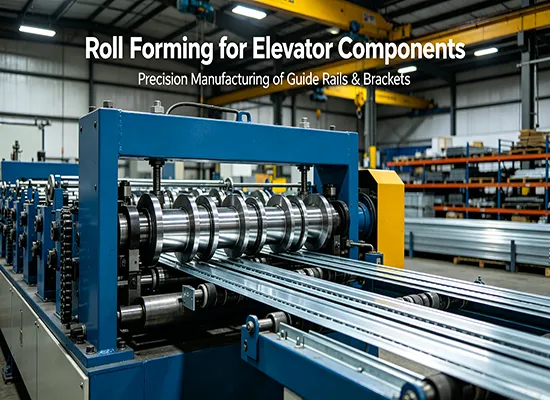

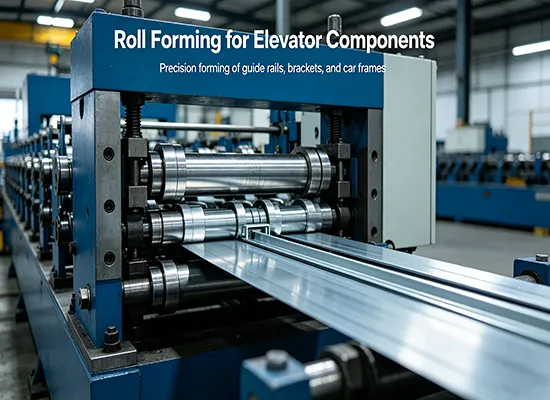

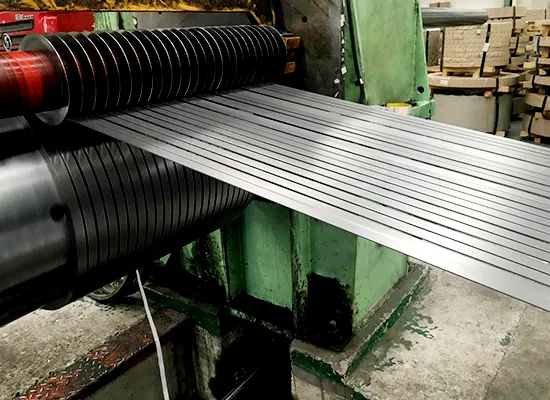

Our roll formed elevator components are manufactured by continuous cold roll forming process from galvanized or cold-rolled steel strip. They feature high dimensional accuracy, smooth surface finish and excellent straightness, widely used as elevator car door tracks, landing door guide channels, stiffeners and structural profiles for lift systems.
Typical Products: Elevator car door guide rail/track, landing door channel, door frame stiffener, counterweight guide sections, cab trim mouldings and U/C channels.
Standard & Certification: ISO 9001certified, compliant with EN 81/ GB 7588dimensional requirements on request.
| Parameter | Specification / Typical Value |
| Component Types | Hollow Elevator Guide Rail (TK3 / TK5 / TK3A / TK5A), Door Guide Channel (C/U-section), Rail Bracket / Fishplate Stiffener, Car Frame Reinforcement Strip |

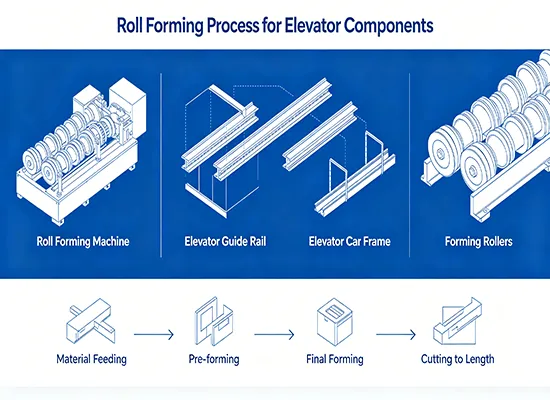

| Manufacturing Process | Continuous Cold Roll Forming + In-line Piercing + Laser/Hydraulic Cut-to-length; Hollow rails seam-welded (optional) |
| Material Grade | Q235B / Q345B (ASTM A36 / S355JR), SUS304 Stainless (optional for decorative/marine elevators) |
| Yield Strength | ≥235 MPa (Q235); ≥345 MPa (Q345) |
| Material Thickness | 1.2 – 3.0 mm (hollow rail); 1.0 – 2.0 mm (door channel); 2.0 – 4.0 mm (bracket) |
| Typical Rail Dimensions (Hollow T) | TK3: 70×55×10×1.8mm; TK5: 87×60×16×1.8mm; TK3A/TK5A per JG/T spec |
| Door Guide Channel Size | 16×16mm / 20×20mm / 25×25mm C-channel or U-channel, with pre-drilled M6/M8 holes |
| Rail Bracket Size | L-shaped / Z-shaped stiffeners, 30–80mm leg, thickness 2.5–4.0mm, punched for M12/M16 anchor |
| Length (Cut-to-length) | 1,000 – 6,000 mm (standard 5m), tolerance ±1.0 mm |
| Straightness (Rail) | ≤0.5 mm/m, ≤2.5 mm/5m (per JG/T 5072.3 Class A) |
| Twist (Rail) | ≤1.0 mm over full length |
| Surface Treatment | Hot-Dip Galvanized (HDG ≥65μm), Electro-Galvanized (Zn 8–12μm), Black Oil Coating, or Pickled & Oiled (for further painting) |
| Punching / Holes | Fishplate bolt holes (M10/M12), bracket mounting holes per T-rail standard pitch (200/400mm options) |
| Applicable Standards | EN 81-20/50, ISO 7465, JG/T 5072.3-1996, GB/T 10060, ASME A17.1 (on request) |
| Packaging | Bundled with steel strap + VCI paper + Plywood crate for export |
High straightness and uniform profile geometry

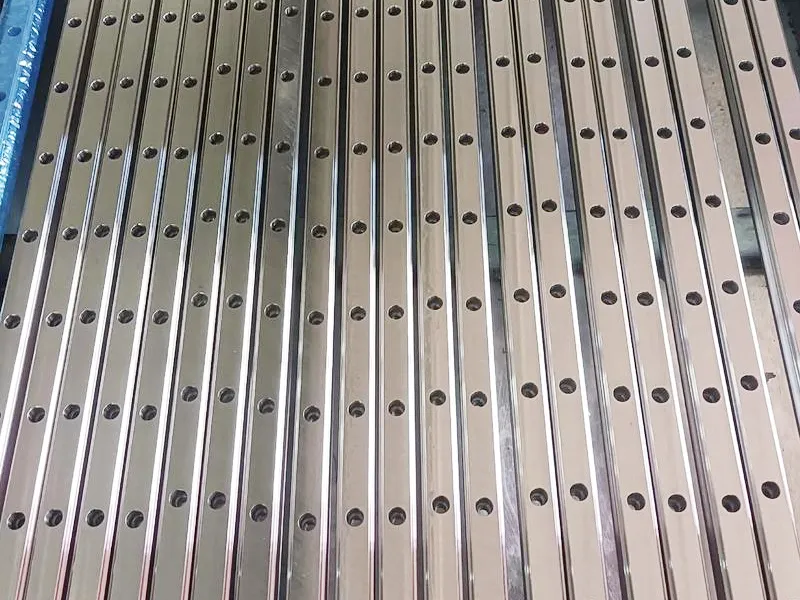

Inline precision hole punching for easy assembly
Corrosion-resistant surface (galvanized / pre-painted / powder coated)
Customizable cross-section as per customer drawing or samples
