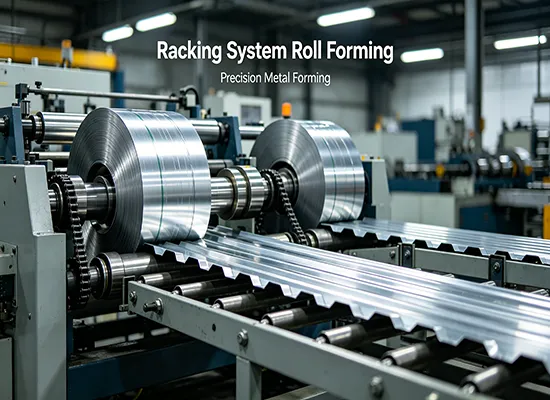

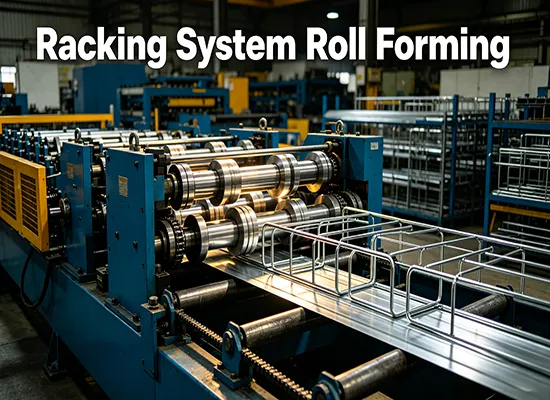

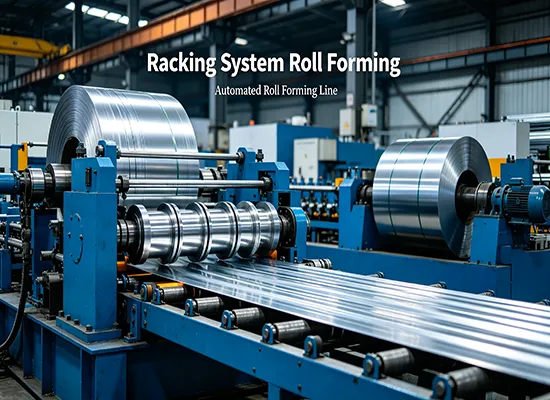

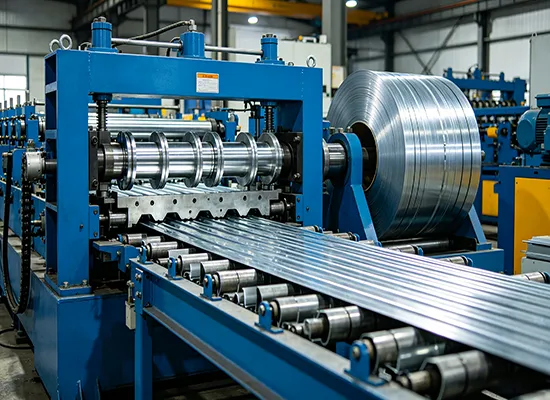

Our Racking System Roll Forming Machine is a professional continuous cold roll forming solution tailored for the storage and logistics industry. It is widely used to manufacture heavy-duty warehouse rack uprights, cross beams, box beams, and other structural rack profiles from galvanized steel, cold-rolled steel, and stainless steel strips.
This racking roll forming line supports customized profile molds according to customers’ drawings, applicable to supermarket shelves, industrial warehouse pallet racks, heavy-duty storage racks, and logistic equipment profiles. With high automation, easy maintenance, and stable performance, it is the preferred equipment for large-scale rack manufacturing factories to improve production efficiency and reduce labor costs.
| Technical Item | Specification Data |
| Processing Material | Cold rolled steel, galvanized steel, hot-dip galvanized steel |
| Material Thickness | 1.2mm – 3.0mm |
| Forming Speed | 10–18 m/min (adjustable) |
| Forming Roller Stations | 18–24 stations (customized by profile) |
| Roller Material | Cr12MoV alloy steel, heat treated and precision polished |
| Main Shaft Diameter | Φ70mm / Φ80mm |
| Main Motor Power | 22 KW |
| Hydraulic Station Power | 7.5 KW |
| Working Hydraulic Pressure | 16 MPa |
| Cutting System | Hydraulic flying cut, automatic fixed-length cutting |

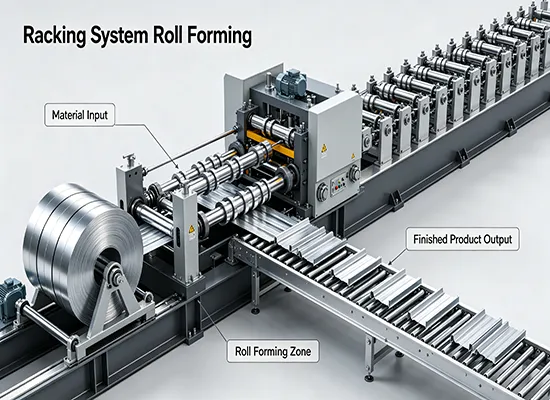

Full Automatic Production: Integrates feeding, leveling, forming, punching, and cutting, realizing unmanned continuous production.
High Forming Precision: Strict profile tolerance control, ensuring consistent product size and perfect assembly of racking systems.
Durable Roller System: Heat-treated alloy steel rollers, anti-wear and anti-deformation, long working lifespan.
Intelligent PLC Control: Simple operation, precise parameter adjustment, and automatic counting & error alarm function.
Wide Compatibility: Customizable molds for different rack upright, beam and shelf profiles to meet diverse market demands.
High Efficiency & Cost-saving: Fast forming speed, low failure rate, greatly reducing manual and production costs.
We are looking forward to working with you. Please feel free to contact us if you have any inquiry.
