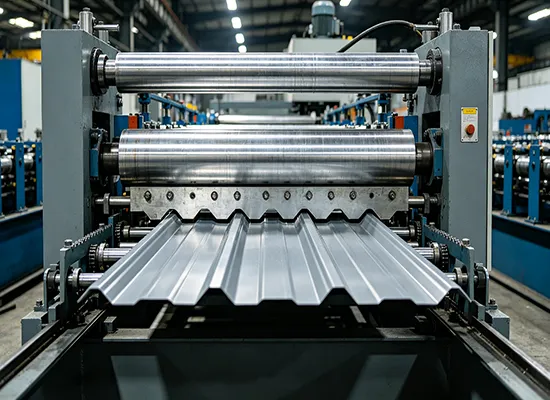

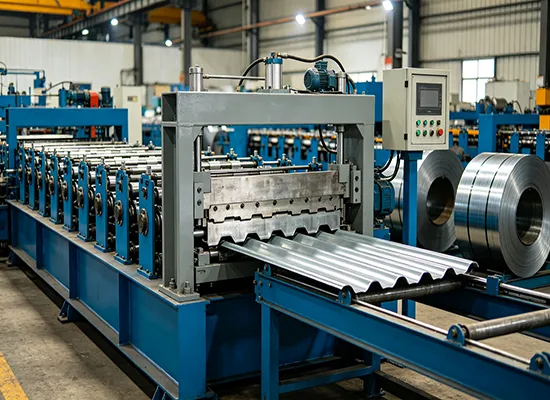

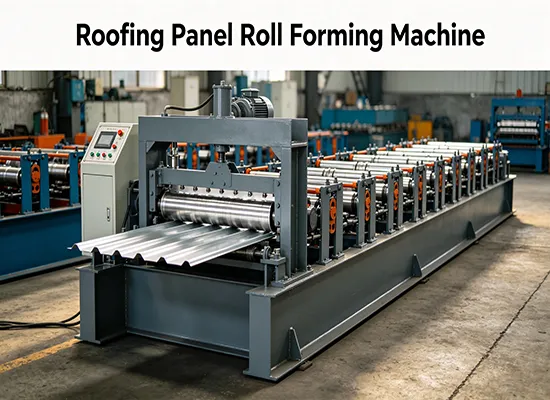

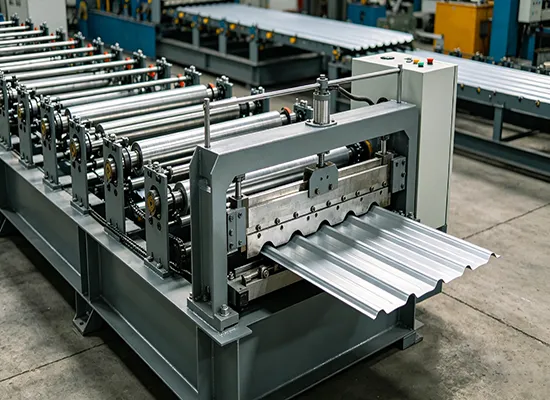

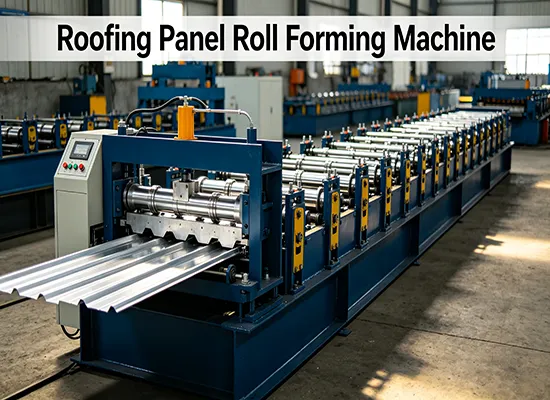

Roofing Panel Roll Forming Machine is a fully automatic, high-efficiency cold roll forming equipment specially designed for continuous production of metal roof panels. It is widely used in steel structure buildings, factory workshops, warehouses, villas, stadiums, and other industrial and civil construction roofing projects.
This roll forming machine adopts premium steel plate welding frame and high-precision solid rolling shafts, ensuring stable operation, strong rigidity, and long service life. The whole production process from material feeding, leveling, roll forming, embossing, hydraulic cutting to finished product output is fully automated, which effectively reduces manual operation errors and greatly improves production efficiency. The machine can process various metal materials such as color steel coil, galvanized steel coil, and aluminum coil, producing roofing panels with neat edges, smooth surface, uniform texture and excellent waterproof and wind resistance performance.
| parameter | specification |
| Raw Material Parameters | |
| Applicable Material | Color coated steel coil, galvanized steel coil, aluminum coil, PPGI, PPGL |
| Material Thickness | 0.3mm – 0.8mm |
| Inner Diameter of Coil | 450mm – 508mm |
| Max Coil Weight | 5000kg |
| Forming & Product Parameters | |
| Effective Cover Width | Customized (commonly 840mm / 900mm / 1000mm / 1080mm) |
| Forming Speed | 8 – 15 m/min |
| Forming Stations | 18 – 24 rollers (customized according to profile) |
| Forming Tolerance | ±1.5mm per 10m |
| Cutting Precision | ±2mm |
| Finished Panel Surface | Smooth, no scratch, uniform molding |
| Roller & Shaft Configuration | |
| Shaft Material | 45# solid steel shaft, diameter φ70mm / φ75mm |
| Roller Material | High-quality 45# steel with hard chromium plating |
| Roller Hardness | HRC 55-58 |
| Transmission Mode | Chain drive / gear box drive (optional) |
| Cutting System | |
| Cutting Type | Hydraulic automatic fixed-length cutting |
| Blade Material | Cr12MoV high wear-resistant steel |
| Cutting Flatness | No burr, neat incision |
| Control System | |
| Control System | PLC full automatic control |
| Operation Interface | Touch screen + button control |
| Voltage | 380V 50Hz 3Phase (customizable) |
| Operating Language | English / Chinese / Multi-language optional |
| Function | Automatic feeding, counting, fixed-length forming, automatic cutting, fault alarm |
| Power Configuration | |
| Main Motor Power | 5.5KW / 7.5KW |
| Hydraulic Station Power | 3KW |
| Total Power | About 8.5KW – 10.5KW |
| Machine Structure & Dimension | |
| Machine Frame | Heavy-duty welded steel structure, integral annealing treatment |
| Machine Color | Customized standard industrial paint |
| Overall Dimension (L×W×H) | 6500mm × 1300mm × 1500mm (standard model) |
| Machine Weight | About 2800kg – 3500kg |
| Standard Accessories | 1 set manual uncoiler |
| 1 set main roll forming host | |
| 1 set hydraulic cutting device | |
| 1 set PLC control cabinet | |
| 1 set receiving table | |
| Complete installation tools and operation manual | |
Fully automatic running, high output and labor-saving
Heavy-duty machine body, stable running without shaking
High-precision forming, precise panel size and good flatness
Compatible with color steel, galvanized steel, aluminum and other raw materials
Intelligent PLC control, simple and safe operation
Durable rollers and blades, low maintenance cost
Support customized profiles and technical parameters
We are looking forward to working with you. Please feel free to contact us if you have any inquiry.
