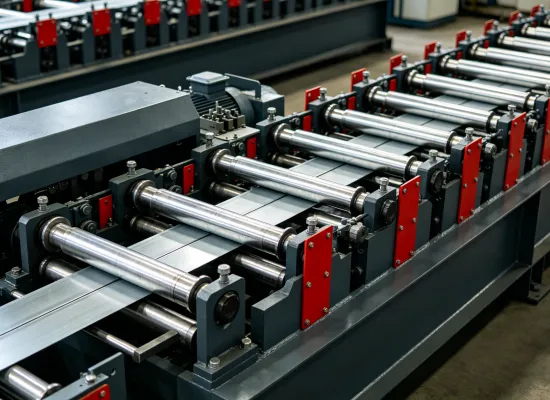

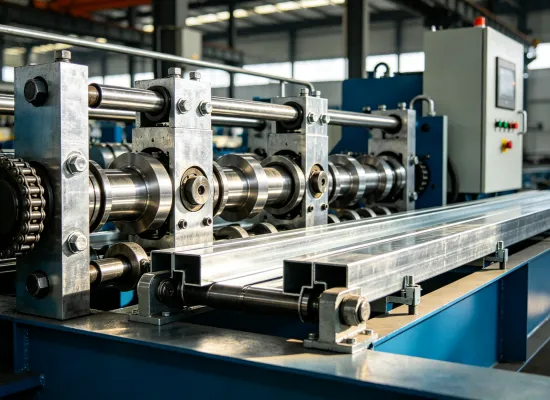

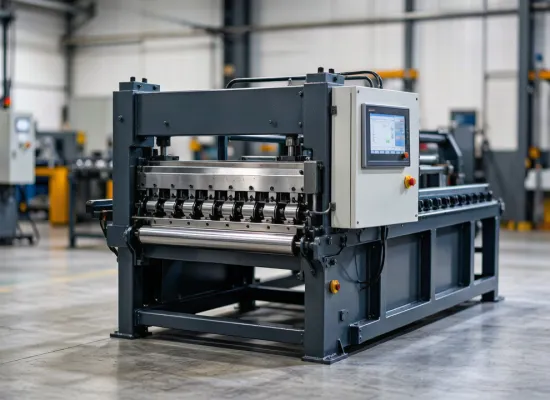

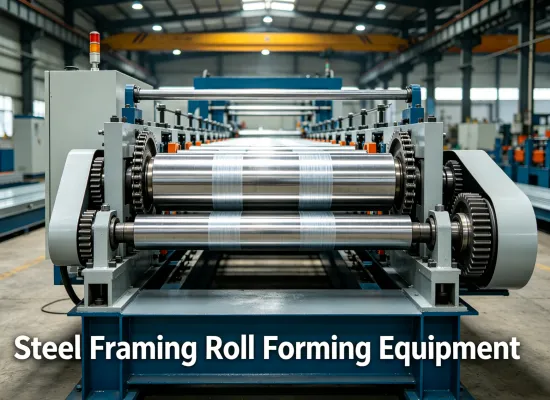

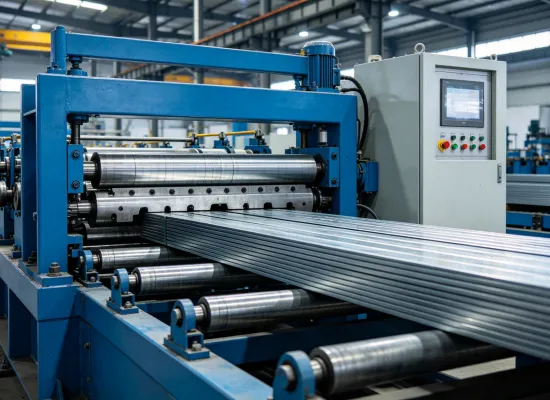

The Steel Framing Roll Forming Equipment is a high-efficiency production line engineered to manufacture precision light gauge steel profiles (LGS) used in modern construction. This fully automated system transforms galvanized steel coils into accurate C-shaped, U-shaped, and custom stud and track sections, which serve as the structural backbone for residential, commercial, and industrial buildings.
| Parameter | Specification |
| Applicable Material | Galvanized Steel (GI), Aluminum-Zinc Alloy Coated Steel |
| Material Thickness | 0.4 mm – 1.2 mm (Customizable) |
| Forming Speed | 10 – 60 meters per minute (depending on profile complexity) |
| Main Motor Power | 7.5 kW – 15 kW |
| Roller Material | Cr12MoV / GCr15 Steel, Hard Chrome Plated |
| Control System | PLC (Siemens / Mitsubishi / Delta) + Touch Screen |
| Cutting Type | Hydraulic Post-Cutting (No material waste) |
High Precision Punching: Integrated hydraulic punching systems allow for precise web holes, flange holes, and dimple formations according to engineering designs.
Automatic Size Adjustment: Equipped with a PLC control system, the machine allows for quick changeovers between different widths and heights without manual roller replacement.
Heavy-Duty Construction: Built with GCr15 steel rollers and a robust mainframe, ensuring durability and consistent performance under continuous operation.
Intelligent Control System: User-friendly touch screen interface supporting CAD/CAM file imports for direct production of complex framing layouts.
